Engineering Luxury: How We Delivered a Five-Star Hotel Lobby Custom Acrylic Project in 42 Days

Table of Content

Project Fact Sheet

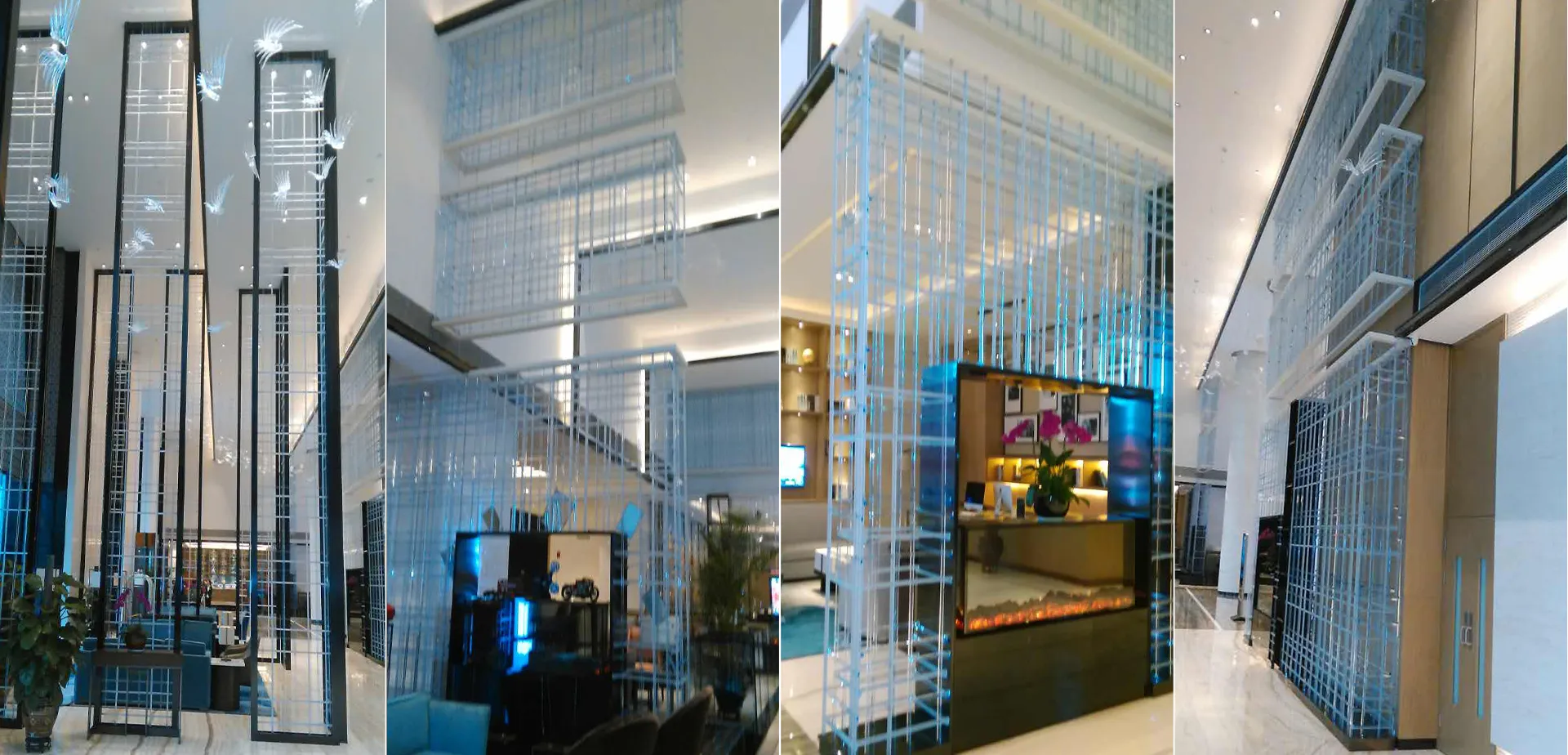

Project Scope: Five-Star Hotel Lobby Renovation (Ceiling light-transmitting panels, structural column edge claddings, front desk decorative blocks, art ornaments).
Lead Time: 42 Days (Delivered 3 days ahead of schedule).
Material Specification: 10mm to 100mm Heavy-Gauge 100% Virgin MMA Cast Acrylic.
Core Technologies: Precision 5-Axis CNC Machining, Solvent Polymerization (Seamless Splicing), Thermal Annealing (Stress Relief), Diamond Polishing.
Compliance: ISO9001, SGS Environmental Certification, International Commercial Fire Retardancy Standards.

The Executive Dilemma: When Standard Plastic Fails

A branch of an internationally renowned five-star hotel group approached JFM with a rigid 45-day deadline for their lobby renovation. The architectural blueprints called for massive, high-end acrylic decoration packages designed to manipulate complex light and shadow environments.

The stakes were incredibly high. In a luxury hospitality setting, acrylic cannot just be “transparent.” It must possess optical-grade clarity with zero impurities, maintain absolute structural integrity under thermal stress, and comply with strict fire codes—all while being installed without disrupting the hotel’s 24/7 daily operations.

Many trading companies step away from 100mm heavy-gauge acrylic projects because the margin for error is zero. As a source factory with 20 years of deep-rooted manufacturing experience, we know exactly where the pitfalls lie: crazing, yellowing, and visible splicing seams. Here is the engineering roadmap of how we solved them.

1. Material Science: The 100% Virgin MMA Imperative

You cannot achieve luxury optical properties using extruded acrylic or recycled resin blends. For this project, the thicknesses required ranged from 10mm for ceiling panels to a massive 100mm for the front desk decorative blocks.

We mandated the use of 100% Virgin MMA (Methyl Methacrylate) cast acrylic.

When casting acrylic at 100mm thickness, the exothermic curing process must be meticulously controlled. If the cooling curve is rushed to save time, the core of the block develops microscopic optical distortions. By strictly controlling the casting environment, we achieved a light transmission rate of over 92%—rivaling optical glass, but at half the weight and with ten times the impact resistance. There are no black specs, no cloudiness, and no visual distortions when backlit by the lobby’s high-lumen LED arrays.

2. Overcoming the Invisible Enemy: CNC Machining and Thermal Annealing

Machining 100mm thick heavy-gauge acrylic is a brutal test of a factory’s capability. When our 5-axis CNC machines route intricate 3D geometries, the friction generates intense localized heat. This heat alters the polymer chains at the cut edge, introducing massive internal stress. If a supplier simply polishes and ships the machined block, ambient temperature fluctuations will eventually cause micro-cracking—an industry failure known as crazing.

The JFM Annealing Protocol: To eliminate this risk, every heavily machined piece for this project was sent to our industrial temperature-controlled ovens. We slowly ramped the temperature to 80°C, held the panels in a heat soak for 8 to 12 hours depending on their thickness, and then gradually brought them back to room temperature. This thermal annealing process relaxes the polymer chains, completely releasing the internal stress. It costs us more in time and electricity, but it guarantees a lifespan measured in decades, not months.

3. The Splicing Masterclass: True Seamless Solvent Bonding

The hotel’s design required large-format acrylic column edge claddings that exceeded maximum standard casting sizes. Splicing was inevitable.

Standard commercial adhesives were out of the question—they shrink, trap air bubbles, and eventually yellow under UV light, leaving a hideous visual scar right at eye level. Instead, our senior technicians utilized solvent polymerization bonding.

We apply a highly volatile solvent that temporarily dissolves the contact surfaces of the two acrylic panels. When clamped together under calculated pneumatic pressure in our clean-room environment, the solvent evaporates, and the two pieces of acrylic physically fuse back into a single monolithic molecular structure. After a multi-step diamond buffing process, the seam becomes practically invisible. The client’s inspection team found zero traces of splicing deformation or uneven light transmission.

4. Defeating Time: Anti-Yellowing UV Coatings and Fire Retardancy

Hotel lobbies are subjected to harsh daily UV radiation from massive glass facades, combined with intense artificial lighting. To prevent degradation, we applied a secondary anti-yellowing UV-cured hard coating, which also dramatically improved the scratch resistance of the front desk panels against luggage and daily wear.

Furthermore, meeting international hotel fire codes without making the material cloudy is a delicate balancing act. We engineered a customized formulation incorporating halogen-free fire retardants. We successfully passed SGS fire resistance tests while preserving a 90%+ transparency rate.

5. Night-Shift Logistics: Engineering for Thermal Expansion

Acrylic has a thermal expansion coefficient significantly higher than glass. A 3-meter-long ceiling panel will physically expand and contract as the HVAC system cycles. If bolted tightly to a rigid frame, the acrylic will warp or crack at the mounting holes.

Our engineering team designed custom floating brackets utilizing Teflon washers and slotted mounting holes. This allowed the massive acrylic structures to “breathe” and expand naturally without compromising structural safety.

To strictly control the 45-day delivery cycle, our construction team implemented a zoned, night-shift-only installation protocol (11:00 PM to 5:00 AM). Utilizing silent dust extraction systems and full-coverage protective masking films, we ensured zero interference with the hotel’s operations.

Customer Feedback

We completed the final handover on Day 42—three days ahead of the strict deadline.

Official Feedback from the Hotel Project Director: “The quality of the finished product exceeds our highest expectations. The extreme transparency of the heavy-gauge acrylic is perfectly integrated with the light and shadow dynamics of our lobby. What impressed us most was the seamless splicing—there are absolutely no visible traces even up close. The construction process was surgically precise, efficient, and completely invisible to our guests. JFM will undoubtedly be our preferred manufacturing partner for all subsequent branch upgrades.”

The Factory Manager's Bottom Line

In commercial B2B acrylic fabrication, you get exactly what you pay for. A 100mm acrylic block that hasn’t been properly annealed will look identical on day one to a properly processed block—until it cracks six months later. At JFM, we refuse to compromise on the invisible engineering processes. We don’t just sell acrylic; we deliver structural peace of mind.

Frequently Asked Questions (FAQ)

Q1: Why is thermal annealing necessary for custom acrylic projects? A: When acrylic is laser-cut or CNC machined, the heat generated creates severe internal stress along the edges. If not treated, this stress leads to “crazing” (micro-cracks) over time, especially when exposed to temperature changes or cleaning chemicals. Thermal annealing in industrial ovens safely relaxes the polymer chains, preventing these cracks and ensuring long-term durability.

Q2: What makes your seamless splicing different from standard acrylic gluing? A: Standard adhesives act as a third layer between two acrylic pieces, which often traps air bubbles and turns yellow under UV light. We use solvent polymerization bonding. The solvent temporarily dissolves the acrylic surfaces, fusing them together at a molecular level. Once the solvent evaporates, the two pieces become one solid block with a practically invisible, bubble-free seam.

Q3: Can heavy-gauge acrylic pass commercial fire codes without losing its optical clarity? A: Yes, but it requires highly specific chemistry. Traditional fire retardants can make acrylic cloudy or milky. We utilize advanced halogen-free fire retardant formulations during the casting process that allow the material to pass strict SGS commercial fire resistance tests while maintaining over 90% light transmission.

Q4: How do you prevent large acrylic panels from warping after installation? A: Acrylic expands and contracts with temperature fluctuations more than glass or metal. If you bolt a large panel directly to a rigid wall or ceiling, it will crack at the drill holes. Our engineering team designs custom floating mounting systems using slotted holes and Teflon washers, giving the acrylic the precise physical tolerance it needs to “breathe” without compromising structural integrity.

Q5: We have a strict deadline and cannot disrupt our daily business operations. Can you handle this? A: Absolutely. For operational hospitality and retail clients, we pre-fabricate and pre-assemble as much as possible at our facility. On-site, we deploy zoned, night-shift installation teams (typically 11:00 PM to 5:00 AM) using silent tools and heavy-duty masking protocols to ensure your daily operations remain completely unaffected.
