The Complete B2B Guide to Acrylic Heat Bending: Techniques, Quality Control, and Cost Optimization

Table of Content

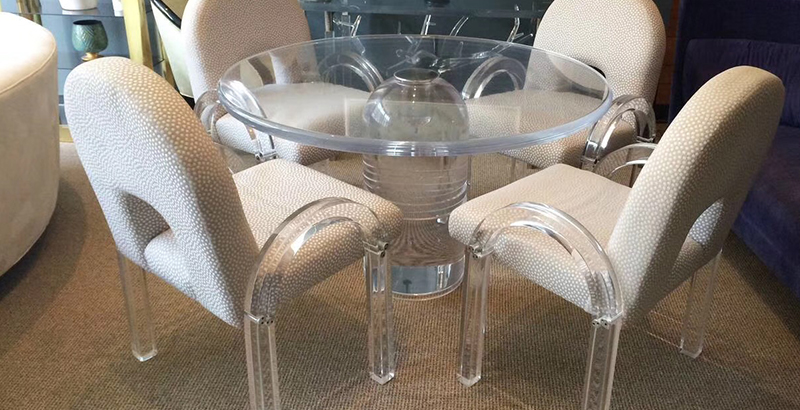

Acrylic (PMMA) is celebrated in the retail, exhibition, and industrial sectors for its glass-like transparency and premium, high-gloss finish. However, its true magic in custom display manufacturing lies in its thermoplasticity. When heated to its glass transition temperature (around 100°C to 105°C), acrylic becomes highly pliable. This allows manufacturers to bend and shape it into seamless retail displays, protective industrial covers, cosmetic organizers, and bespoke furniture.

Yet, for many B2B procurement managers and product designers, sourcing acrylic bent parts can be a major source of quality headaches. Have you ever received a shipment of custom displays only to find unsightly bubbles along the bend? Or perhaps you noticed the corners starting to crack (craze) after solvent bonding or exposure to cleaning agents?

As a premier custom acrylic manufacturer with decades of export experience, we believe in technical transparency. This comprehensive guide will walk you through the primary heat bending techniques, explain how a professional factory eliminates common quality defects, and help you select the most cost-effective process for your next project.

1. Three Essential Acrylic Heat Bending Techniques

Depending on your product’s structural requirements, aesthetic goals, and procurement budget, we utilize three distinct heat bending methods in our factory:

A. Line Bending / Strip Bending

How It Works: The acrylic sheet is positioned over a specialized strip heater (typically an electric heating wire). The heat is applied strictly along a narrow, straight line. Once the plastic softens, the operator folds the sheet to the desired angle using a custom-engineered angle jig to cool and lock the shape.
Best Used For: Simple, straight-line folds. Perfect for L-stands, menu holders, price tag stands, and basic U-shaped risers.
Advantage: Exceptionally cost-effective, fast cycle times, and highly suitable for high-volume production runs.

B. V-Groove Bending

How It Works: Prior to heating, a high-precision CNC router cuts a V-shaped groove (typically 90 degrees) along the bend line on the inside of the acrylic sheet. The grooved area is then heated and folded.
Best Used For: Premium, sharp-cornered acrylic cases, luxury display pedestals, and thick blocks (over 10mm) where a perfectly crisp, 90-degree outer edge is required.
Advantage: Creates an incredibly sharp, clean outside corner with zero bulging. It makes the final product look like a high-end, seamless single block rather than a bent sheet.

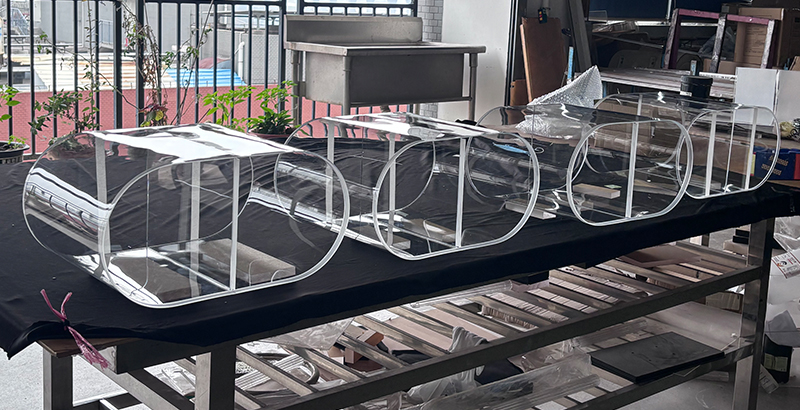

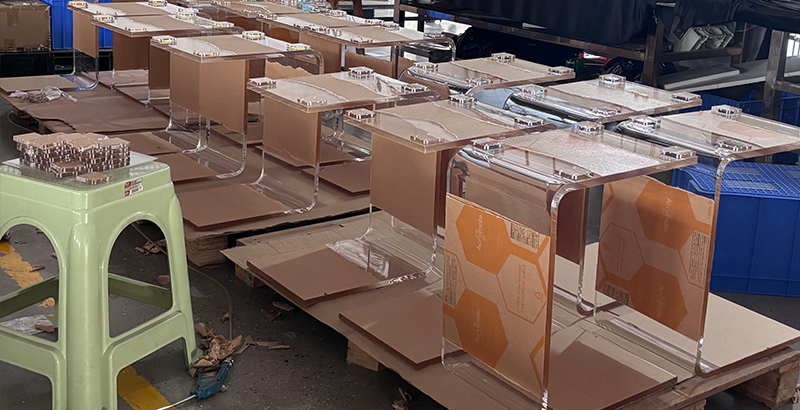

C. Mold Thermoforming & Curving

How It Works: The entire acrylic sheet is placed inside a giant industrial convection oven. Once the sheet is uniformly softened, it is quickly draped over a male or female mold (constructed from wood, MDF, or aluminum) and cooled under pressure.
Best Used For: Large curved cosmetic counters, architectural domes, round dust covers, and complex 3D organic shapes.
Advantage: Enables complex, smooth, multi-dimensional curves and continuous radiuses that standard line bending simply cannot achieve.

2. Technical Comparison Matrix for Procurement Managers

To help your engineering and sourcing teams quickly evaluate process options, refer to our factory comparison table below:

Feature	Line Bending / Strip Bending	V-Groove Bending	Mold Thermoforming
Edge Aesthetics	Slightly rounded outside corner	Sharp, crisp 90-degree corner	Smooth, flowing curves
Max Sheet Thickness	Up to 8mm (typically)	Up to 25mm+	Up to 15mm
Tooling/Mold Cost	Minimal (Standard jigs)	Low (CNC programming)	Medium to High (Custom mold required)
Production Speed	⭐⭐⭐⭐⭐ (Fastest)	⭐⭐⭐⭐ (Medium-Fast)	⭐⭐ (Slower, batch process)
Best Budget Choice	High-volume simple runs	Premium packaging & cases	Bespoke curves & industrial domes

3. Factory Secrets: How We Eliminate Bubbling and Crazing

In B2B manufacturing, details dictate your brand’s reputation and your profit margins. Low-end workshops often cut corners to save time, leading to high reject rates during transit or final assembly. Here is how our engineering team guarantees flawless heat-bent parts:

🚫 Issue 1: Bubbles Along the Bend

The Cause: Acrylic is hygroscopic, meaning it naturally absorbs moisture from the atmosphere. If the sheet is heated too rapidly, or if low-quality extruded sheets with high moisture content are used, this trapped water vapor turns into bubbles at high temperatures.
Our Solution:
1. We prioritize Cast Acrylic for premium bending projects. It has a higher molecular weight and is far less prone to boiling bubbles.
2. For batches exposed to high humidity, we perform pre-drying (baking) in a temperature-controlled oven for 8–24 hours before bending to eliminate all internal moisture.

🚫 Issue 2: Stress Cracking / Crazing

The Cause: Bending forces the acrylic molecules to stretch on the outside and compress on the inside. This creates high internal stress. If you apply UV glue or solvents to a stressed bend, the chemical reaction will instantly trigger thousands of microscopic fractures (crazing) over time.
Our Solution:
- Annealing (Stress Relief): This is our non-negotiable step for high-end parts. After bending, we place the products into an annealing oven for a carefully controlled thermal cycle (usually 60°C to 80°C for several hours, followed by a slow, gradual cool-down). This relaxes the polymer chains, releasing 95% of the internal stress and making the corners virtually immune to solvent cracking.

4. B2B Sourcing Checklist for Custom Acrylic Bending Projects

When sending your RFQ (Request for Quote) to our engineering department, clarifying these three parameters will ensure a 100% accurate quote and a prototype that matches your exact expectations:

What is the sheet thickness?
- Rule of thumb: Under 5mm is ideal for fast line bending. Over 10mm requires V-grooving or dual-sided heating to prevent surface tearing or distortion.
Will the bent parts be bonded to other pieces?
- If yes: Let us know so we can schedule the post-bend annealing process to prevent glue crazing during assembly.
Are there strict dimensional tolerances?
- Normal strip bending has a tolerance of about ±1.0mm due to material spring-back. If your assembly requires tighter tolerances (within ±0.3mm), we will design custom cooling fixtures (cooling jigs) to clamp the parts firmly during the cooling stage.

To protect your commercial display fixtures and high-end acrylic products, keep alcohol far away and follow these industry-approved maintenance protocols:

At [Your Factory Name], custom acrylic fabrication is our passion and precision is our standard. Our facility is equipped with state-of-the-art automatic multi-line bending machines, heavy-duty CNC routers for perfect V-grooves, and massive annealing ovens to ensure your products last a lifetime.

Whether you need 100 high-end cosmetic counter organizers or 10,000 industrial barriers, our team is ready to engineer the perfect, cost-optimized process for you.
